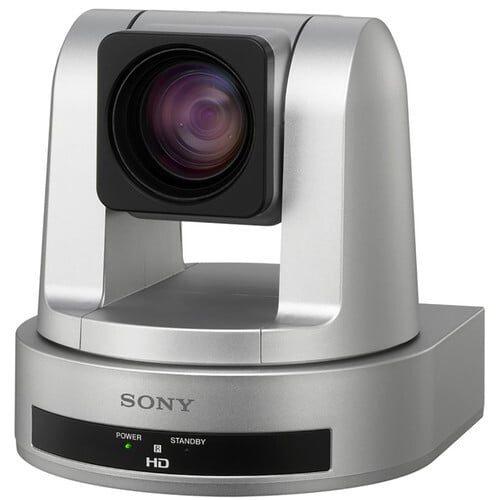

Sony SRG-120DU USB 3.0 Full HD PTZ Camera

Image Sensor

1-Chip 1/2.8" CMOS Sensor

Effective Sensor Resolution

2.1 MP

Gain

0 to 43 dB

Signal-to-Noise Ratio

50 dB

Minimum Illumination

1.8 Lux

Shutter Speed

1/1 to 1/10,000 sec

Max Digital Zoom

12x

Optical Zoom Ratio

12x

Minimum Focusing Distance

Wide: 0.4" / 10.0 mm

Focus Control

Autofocus
Manual Focus

Broadcast System Compatibility

NTSC

Output Formats

USB: 1920 x 1080p at 59.94, 50, 29.97, 25 fps
1280 x 720p at 59.94, 50, 29.97, 25 fps

Move Speed

Pan: 300°/sec
Tilt: 126°/sec

Movement Range

Pan: 200° (-100 to 100°)
Tilt: 50° (-25 to 25°)

Supported Control Protocols

RS-232
IP

Video Output Connectors

1 x USB 3.0 Type-B (USB Video) Female

Power Consumption

10.8 to 13.2 VDC16.8 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions

6.1 x 6 x 6" / 156 x 153 x 153 mm

Weight

3.5 lb / 1.6 kg

Package Weight

5.45 lb

Box Dimensions (LxWxH)

10.4 x 10.1 x 9.3"
