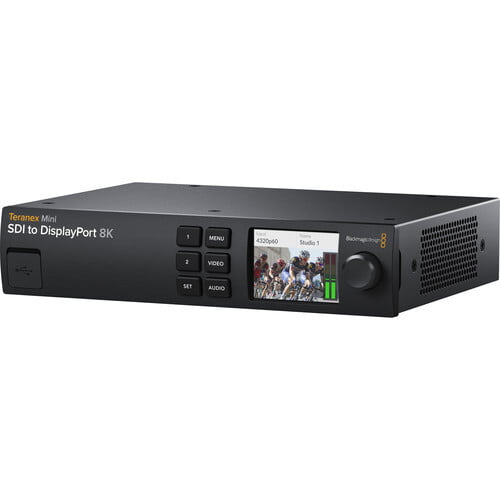

Blackmagic Design Teranex Mini - SDI to DisplayPort 8K HDR
The Teranex Mini SDI to DisplayPort 8K HDR Converter from Blackmagic Design provides an advanced 8K monitoring solution. Its DisplayPort outputs enable you use pro monitors like the Apple Pro Display XDR as part of your on-set or post-production monitor setup.
Specification
Input
Video Input Connectors | 4 x BNC (12G-SDI) |
Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) |
Audio Input Connectors | None |
Embedded Audio Input | SDI: 16-Channel (per Input) |
Output
Video Output Connectors | 4 x BNC (12G-SDI) (Loop Output) |
Output Video Format | SDI (4:4:4/4:2:2 RGB, YUV) |
Audio Output Connectors | 2 x RCA Analog |
Output Audio Format | Analog: 48 kHz / 24-Bit |
Embedded Audio Output | SDI: 16-Channel (per Output) |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
Connectivity
Other I/O | 1 x RJ45 Control |
Hardware
Display Size | 2.2" |
OS Compatibility | Windows 10 |
Power Connector | 1 x IEC C14 Input |
Power Consumption | Device: 100 to 240 VAC (35 W) |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% |
General
Dimensions | 8.27 x 1.73 x 6.93" / 21.01 x 4.39 x 17.6 cm |
Weight | 2.6 lb / 1.18 kg |
Warranty Length | Limited 1-Year Warranty |
