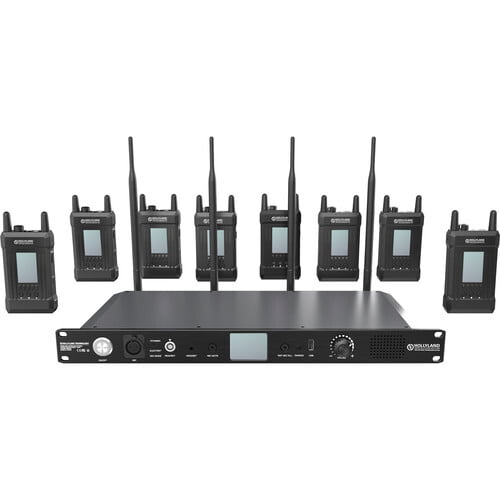

Hollyland Syscom 1000T-8B Full-Duplex Intercom System with Eight Beltpacks and Headsets

Number of Included Headsets

8 x Single-Sided Headset

Number of Included Transceivers

8 x Beltpack

Earpiece Design

Over-Ear (Circumaural)

Earpiece Connection / Wearing Style

Headband

Number of Earpieces

Single Earpiece (Left Side)

Sound Field

Mono

Driver Type

Dynamic

Controls/Microphone Location

Microphone: Fixed Boom

Mic Boom Location

Left Side

Wireless Transmission

Digital 1.9 GHz
Digital 2.4 GHz

RF Bandwidth

Up to 1.73 MHz

Wireless Modulation

GFSK

Duplex Mode

Full-Duplex (FDX)

Approximate RF Sensitivity

-93 dBm

Wireless Range

1000' / 304.8 m

Audio Connector to Source

1 x 1/8" / 3.5 mm TRRS Male Straight
1 x LEMO (Unspecified Type) Female Straight

Battery Chemistry

Beltpack:
Lithium-Ion Polymer (LiPo)

Capacity (mAh)

4000 mAh

Runtime

Beltpack:
8 Hours

Users per System

8

I/O Connectors

2 x XLR 3-Pin - Audio Input
1 x XLR 3-Pin - Audio Output
1 x LEMO - Audio Input/Output
1 x 1/8" / 3.5 mm - Audio Input/Output
1 x USB Type-A - Input/Output
1 x USB Type-C - Input/Output
1 x DB25 - Control Input/Output

Antenna

Base Station:
4 x 1/2 Wave External, Detachable

AC/DC Power Adapter

10 to 20 VDC (Not Included)

AC Input Power

110 to 240 VAC, 50 / 60 Hz

Power Consumption

6 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Certifications

CE, FCC, as per Manufacturer

Water Resistance

None

IP Rating

None

Material of Construction

Metal

Dimensions

Base Station:
19 x 6.89 x 1.75" / 482.6 x 175 x 44.4 mm
Beltpack:
4.72 x 2.8 x 0.98" / 120 x 71 x 25 mm

Weight

Base Station:
6.4 lb / 2.9 kg
Beltpack:
0.7 lb / 0.3 kg
