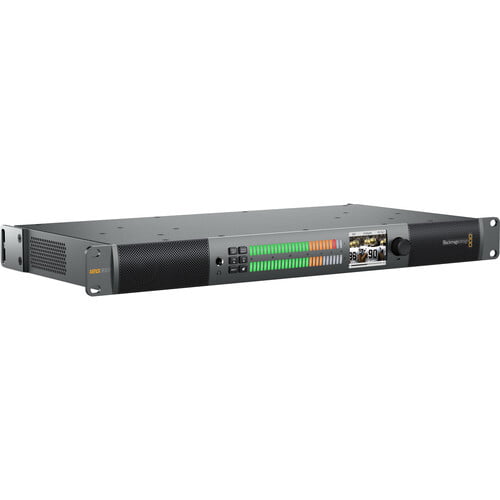

Blackmagic Design Audio Monitor 12G

Amplifiers

Class-D

Inputs

Output

1 x SDI, Video Loop Out
1 x HDMI 2.0, Video
1 x 1/4" / 6.5 mm Headphone Jack

Control

1 x USB Type-C, Port
1 x RJ45, Ethernet Port

SDI Rate

270 Mb, 1.5G, 3G, 6G, and 12G

Built-In Speakers

2-Way Stereo, 2 x Subwoofers, 2 x Full-Range Drivers

Metering

2 x 27-Segment RGB LED VU, PPM, or Loudness Meters

SD Video Standards

525i59.94 NTSC and 625i50 PAL

HD Video Standards

1080p at 50, 59.94, and 60
1080p at 23.98, 24, 25, 29.97, and 30
1080PsF at 23.98, 24, 25, 29.97, and 30
1080i at 50, 59.94, and 60
720p at 50, 59.94, and 60

2K Format Support

2K DCI at 23.98p, 24p, and 25p
2K at 23.98PsF, 24PsF, and 25PsF

Ultra HD Format Support

2160p at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60

4K Format Support

4K DCIp at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, and SMPTE 2082-10

SDI Auto Switching

Automatically Selects Between SD, HD, 3G-SDI Level A and B, 6G-SDI, and 12G-SDI

Audio Sampling

96 kHz and 24-bit

Video Sampling

4:2:2 and 4:4:4

Operating Systems

Mac 10.13 High Sierra, Mac 10.14 Mojave or later, Windows 8.1, and Windows 10

Display Size

2.2" Diagonal

Display Resolution

320 x 240

Power Supply

100 to 240 VAC, Internal

Power Usage

55 W

Material

Machined Metal

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Dimensions

19 x 9.65 x 1.73" / 48.3 x 24.5 x 4.4 cm

Weight

5.73 lb / 2.6 kg
