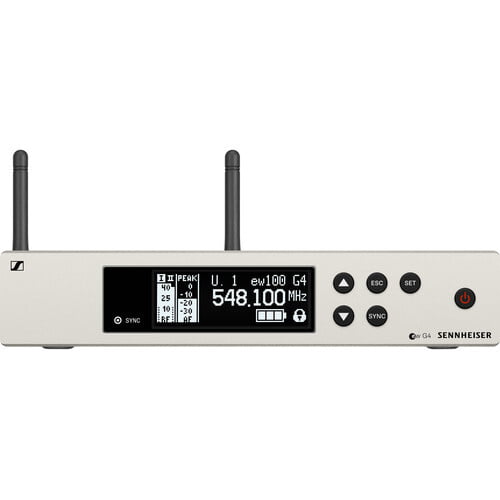

Sennheiser EM 100 G4-D

Frequency range

1G8: 1785 - 1800 MHz

A: 516 - 558 MHz

A1: 470 - 516 MHz

AS: 520 - 558 MHz

B: 626 - 668 MHz

C: 734 - 776 MHz

D: 780 - 822 MHz

E: 823 - 865 MHz

G: 566 - 608 MHz

GB: 606 - 648 MHz

JB: 806 - 810 MHz

K+: 925 - 937,5 MHz

Dimensions

Approx. 190 x 212 x 43 mm

Compander

Sennheiser HDX

THD, total harmonic distortion

≤ 0.9 %

Weight

Approx. 980 g

Audio output

6.3 mm jack socket (unbalanced): +12 dBu

XLR socket (balanced): +18 dBu

Signal-to-noise ratio

≥ 110 dBA

Switching bandwidth

up to 42 MHz

Peak deviation

±48 kHz

Nominal deviation

±24 kHz

Modulation

Wideband FM

Power supply

12 V DC

Antenna connector

2 BNC sockets

Current consumption

300 mA

Adjacent channel rejection

Typically ≥ 65 dB

Intermodulation attenuation

Typically ≥ 65 dB

Receiving frequency

Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

RF sensitivity

< 2.5 μV for 52 dBA eff S/N

Squelch

low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV

Equalizer

Preset 1: Flat

Preset 2: Low Cut (-3 dB at 180 Hz)

Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

Preset 4: High Boost (+6 dB at 10 kHz)

Temperature Range

-10 °C to +55 °C

Receiver Principle

True diversity

Blocking

≥ 70 dB
