Sennheiser EW 100 G4-ME3-D
$800.00
Tags:

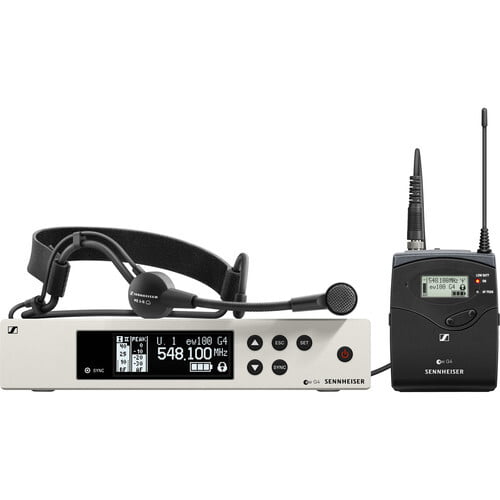

The Sennheiser EW 100 G4-ME3 is an easy-to-set-up rackmount wireless headset microphone system that brings high-quality, reliable audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages.
Product Details
SPECIFICATION
EM 100 G4:
- Frequency range: D: 780 - 822 MHz
- Dimensions: Approx. 190 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight: Approx. 980 g
- Audio output:
- 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: ≥ 110 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 300 mA
- Adjacent channel rejection: Typically ≥ 65 dB
- Intermodulation attenuation: Typically ≥ 65 dB
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity: < 2.5 μV for 52 dBA eff S/N
- Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV
- Equalizer:
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: True diversity
- Blocking: ≥ 70 dB
SK 100 G4:
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Signal-to-noise ratio: ≥ 110 dBA
- RF output power: Max. 30 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- ModulationL Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumptionL
- at nominal voltage: typ. 180 mA
- with transmitter switched off: ≤ 25 µA
- Input impedance: 40 kΩ, unbalanced / 1 MΩ
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response: Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ≤ ±15 ppm
ME 3:
- Connector: 3.5 mm jack
- Sound pressure level (SPL): 150 dB SPL
- Cable length: approx. 1.60 m
- Transducer principle: pre-polarized condensor microphone
- Pick-up pattern: cardioid
- Sensitivity: 1.6 mV/Pa
- Temperature Range: -10 °C to +55 °C
