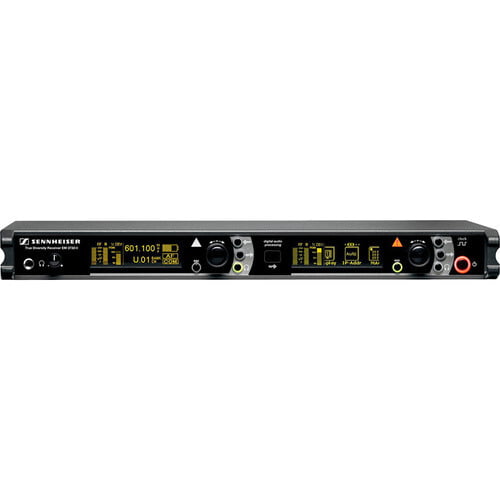

Sennheiser EM 3732-COM-II Two-Channel Wireless Receiver (L: 470 to 638 MHz)

Technical Data

RF frequency range

776 - 960 MHz

614 - 798 MHz

470 - 638 MHz

L: 470 - 638 MHz, N: 614 - 798 MHz, P: 776 - 960 MHz

Dimensions

436 x 44 x 250 mm

Compander

Sennheiser HiDyn plus emulated by DSP, Latency <= 1.9 ms

Audio-XLR connector

analogue: XLR-3, digital AES3: XLR-3 Sample Rates: 44.1, 48, 88.2, 96 kHz, 24 Bit

Frequency response

40 - 20000 Hz

THD, total harmonic distortion

≤ 0,3 %

Weight

ca. 4080 g

Power consumption

max. 50VA, 20 W (AC)

Storage temperature

-25 °C ... +70 °C

Operating temperature

-10 °C ... +55 °C

Signal-to-noise ratio

≥ 118 dB(A) (analogue AF OUT), 140 dB (AES3 audio out)

Switching bandwidth

Up to 184 MHz

Peak deviation

+-56 kHz

Nominal deviation

+-40 kHz

Power supply

100 - 240 V AC, 50/60 Hz

Booster: 12 V DC, 2 x 200 mA, short-circuit-proof

Squelch threshold

13 steps (0 ... 30 μV)

Intermodulation spacing

>= 80 dB

Antenna connector

2 BNC connectors (50 Ω)

Cascadable

2 BNC connectors (50 Ω)

Gain

0 dB ±0,5 dB (ref. to antenna input)

Output voltage

+18 dBu to –10 dBu, adjustable in steps of 1 dB (transformer balanced)

Adjacent channel rejection

typ. 75 dB / +-400 kHz, typ. 80 dB /+-800 kHz

Receiving frequency

6 frequency banks with up to 59 factory-preset frequencies each

1 frequency bank with up to 60 freely selectable frequencies (tunable in steps of 5 kHz)
