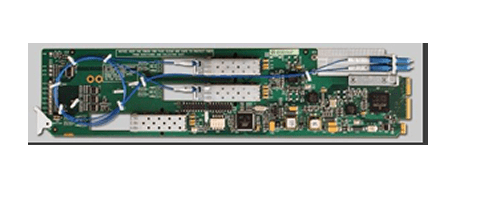

Ross Video FSR-6601 3G SDI Fiber Da, Rx, 1Ch
Non-returnable
$1,618.82
Tags:
Single Optical to Electrical Converter
Single channel SDI optical to electrical converter supporting data rates from 143Mb/s to 2.97Gb/s.
Details
The FSR-6601 is a fiber optic receiver to serial digital SDI converter that supports serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked providing excellent jitter and return loss specifications.
Single channel SDI optical to electrical converter supporting data rates from 143Mb/s to 2.97Gb/s.
Details
The FSR-6601 is a fiber optic receiver to serial digital SDI converter that supports serial digital data rates from 143Mb/s up to 2.97Gb/s (1080p). SDI outputs are reclocked providing excellent jitter and return loss specifications.
Product Details
- SPECIFICATION
- Optical to Electrical for all SMPTE 424M, SMPTE 259M-C, and SMPTE 292M standards
- Comes with a patented Ross Lock fiber locking mechanism for guaranteed connection in adverse circumstances
- Supports single-mode fiber
- Hot-swappable from front of frame with no external connect / reconnect required
- Optical input range 1270nm to 1610nm
- Optical input sensitivity -18dBm
- Optical input connection: LC / UPC
- 6 SDI reclocked outputs, 3 reclocked outputs using the -R2S
- Reclocking on all outputs at 270Mb/s,1.483Gb/s, 1.485Gb/s, 2.967Gb/s, 2.970Gb/s
- Power: 4.5 watts
