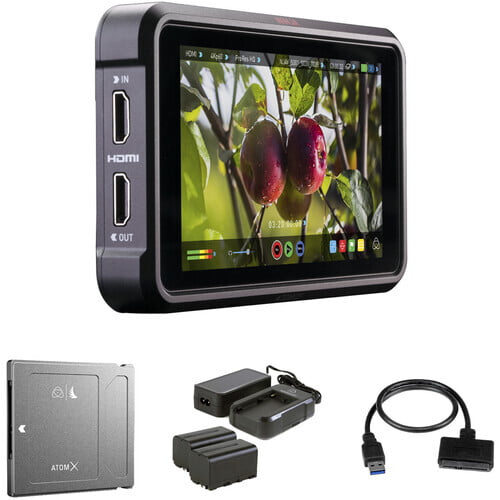

Atomos Ninja V 5" 4K Recording Monitor with 1TB Angelbird AtomX SSDmini Kit
Ninja V 5" 4K Recording Monitor with 1TB Angelbird AtomX SSDmini Kit put together by B&H. The 5" Atomos Ninja V is a compact, on-camera monitor/recorder that records and plays back DCI 4K, UHD 4K, and HD video to/from mini-SSD drives.
Specifiication
Panel Type | IPS-Type LCD |
Display Size | 5.0" / 12.7 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Touchscreen | Yes |
Maximum Brightness | 1000 cd/m2 |
Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
Pixels Per Inch (ppi) | 423 ppi |
Color Gamut | 100% Rec. 709 |
Real-Time LUT Monitoring | SDR |
Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra |
I/O
Video | 1 x HDMI Type A (HDMI 2.0) Input |
Embedded Audio | HDMI: 2-Channel |
Audio | 1 x 1/8" / 3.5 mm Mic/Line Input |
Built-In Speaker | None |
Power | 1 x D-Tap Input |
Other I/O | 1 x LANC (2.5 mm) |
Wireless
Wi-Fi | None |
Format Support
Video Format | HDMI (8/10-Bit 4:2:2) |
Gamma Curve | Rec709 |
Video Signal Conversion | HDMI to SDI |
Recording
Pulldown Conversion | 2:2, 3:2 |
Camera Trigger | HDMI |
Pre-Roll Record | 4K: 2 Seconds |
Encoding Formats | Up to 4097 x 2160 |
Maximum Audio Tracks | 12 |
Metadata Tagging | 10 |
Power
DC Input Power | 6.2 to 16.8 VDC |
Battery Type | 1 x L-Series |
Power Consumption | 10 W (Typical) |
Mounting
Mounting | 2 x 3/8"-16 Female |
Environmental
Operating Temperature | 104°F / 40°C |
General
Material of Construction | Aluminum, Polycarbonate |
Dimensions | 5.9 x 3.6 x 1.2" / 151 x 91.5 x 31.5 mm |
Weight | 12.7 oz / 360 g |
Warranty Length | Limited 1-Year Warranty |
Packaging Info
Package Weight | 2.385 lb |
Box Dimensions (LxWxH) | 7.85 x 5.8 x 4.15" |
Angelbird AtomX SSDmini (1TB) Specs
Performance
Connections | 1 x SATA (SATA III) |
Interface | SATA III (6 Gb/s) |
Maximum Read Speed | 560 MB/s |
Maximum Write Speed | 520 MB/s |
Reliability / Data Integrity
Endurance (Total Bytes Written) | 3000 TB |
Mean Time Between Failures (MTBF) | 2,400,000 Hours |
Power
DC Input Power | 5 VDC |
Power Consumption | 0.35 W (Idle) |
Environmental
Certifications | CE, FCC, REACH, RoHS, as per Manufacturer |
Operating Temperature | -4 to 158°F / -20 to 70°C |
Storage Temperature | -40 to 185°F / -40 to 85°C |
Operating Humidity | 5 to 95% |
Operating Shock | 1000 G / 0.5 ms |
Operating Vibration | 2.17 G |
Physical
Storage Capacity | 1 TB |
Dimensions | 3.15 x 2.97 x 0.37" / 80 x 75.5 x 9.3 mm |
Weight | 3.17 oz / 90 g |
Packaging Info
Package Weight | 0.32 lb |
Box Dimensions (LxWxH) | 4.85 x 4.45 x 0.8" |
Atomos Power Kit V2 Specs
General
Mount / Series Type | Sony L-Series |
Chemistry | Lithium-Ion |
Amp-Hours | 5200 mAh |
Packaging Info
Package Weight | 1.865 lb |
Box Dimensions (LxWxH) | 6.9 x 4.4 x 3.8" |
StarTech USB 3.0 To 2.5" SATA III Drive Adapter Cable (19.7") Specs
General
Number of Bays | 1 x 2.5" |
Connections | 1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s)) |
Compatible Drive Interface | SATA III |
UASP Support | Yes |
Environmental
Operating Temperature | 32 to 140°F / 0 to 60°C |
Operating Humidity | 40 to 85% |
Storage Temperature | 14 to 158°F / -10 to 70°C |
Physical
Bridge Chipset | ASMedia ASM1051E |
Dimensions (W x H x D) | 0.4 x 19.7 x 1.9" / 9 x 500 x 49 mm |
Weight | 1.4 oz / 41 g |
Packaging Info
Package Weight | 0.14 lb |
Box Dimensions (LxWxH) | 8.4 x 7.7 x 1.25" |
