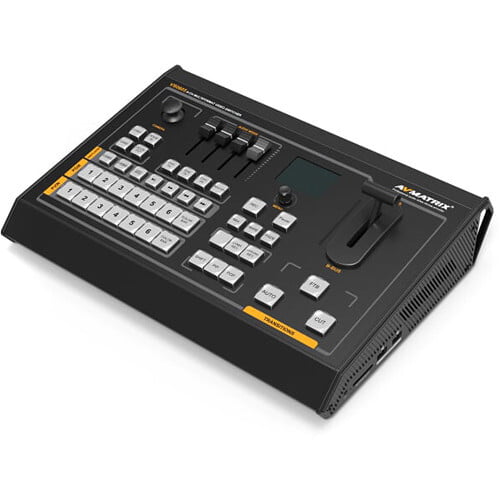

AVMATRIX 6CH SDI HDMI/DVI Video Switcher NO SCREEN

Effect Types

1 x Transition, Chroma Key, Alpha Key, Luma Key

Switching Type

T-Bar

Number of Video Input Sources

8

Video Input Connectors

4 x BNC (3G-SDI / HD-SDI / SD-SDI) Female
2 x HDMI (HDMI 2.0) Female
2 x DVI-I DL (VGA / DVI) Female
1 x HDMI (HDMI 1.4) Female
1 x BNC Female

Input Video Format

HDMI (4:4:4/4:2:2 RGB, YUV)
UHD 4K: 30/50/60 fps
DCI 2K: 30/50/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
576p: 50 fps
PAL: 50 fps
480p: 60 fps
NTSC: 60 fps
SDI (4:4:4/4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps
PAL: 50 fps
NTSC: 59.94 fps
DVI
1080p: 60 fps
WUXGA (1920 x 1200): 60 fps

Audio Input Connectors

2 x 3-Pin XLR Stereo Analog Female
1 x 2RCA Stereo Analog

Video Output Channels

6

Video Output Connectors

2 x BNC (3G-SDI / HD-SDI) Female
2 x HDMI Female
1 x BNC (3G-SDI) Female (Preview)
1 x HDMI Female (Preview)

Output Video Format

HDMI / SDI
1080p: 24/25/30/50/60 fps
1080i: 50/60 fps

Audio Output Connectors

1 x 2RCA Stereo Analog Female

Embedded Audio Output

HDMI: 2-Channel (per Output)
SDI: 2-Channel (per Output)

Multiview Output

2-Way Multiview viaHDMI, SDI

Other I/O

1 x DE-9/DB-9 RS-422 Input/Output
1 x DE-15/DB-15 Tally Input
1 x RJ45 LAN Input/Output

Video Standard Compliance

SMPTE 259M/292M/424M-B

HDCP Support

None

Recording Media

1 x SD (Unspecified Type)

Recording Modes

1920 x 1080p up to 60 fps (MP4 via H.264/AVC)

Power Connector

1 x Barrel (12 VDC at 2 A) Input

Power Consumption

Power Supply: 24 W

Operating Temperature

-4 to 140°F / -20 to 60°C

Storage Temperature

-22 to 158°F / -30 to 70°C

Operating Humidity

20 to 70%

Storage Humidity

0 to 90%

Dimensions

12.6 x 7.76 x 2.28" / 32 x 19.7 x 5.8 cm

Weight

8.16 lb / 3.7 kg

Package Weight

7.915 lb

Box Dimensions (LxWxH)

15.3 x 14.6 x 5"
