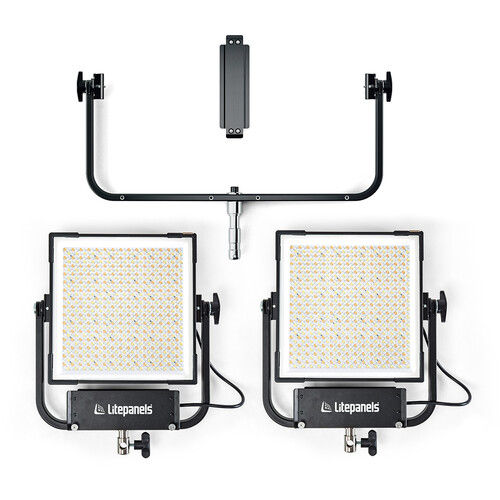

Litepanels Gemini 1x1 Hard Dual Array Light Kit

Photometrics

3200K:
2053.2 fc / 22,101 Lux at 3.3' / 1 m
228.1 fc / 2455.7 Lux at 9.8' / 3 m
82.1 fc / 884 Lux at 16.4' / 5 m
20.5 fc / 221 Lux at 32.8' / 10 m
5600K:
2527.5 fc / 27,207 Lux at 3.3' / 1 m
280.8 fc / 3023 Lux at 9.8' / 3 m
101.1 fc / 1088.3 Lux at 16.4' / 5 m
25.4 fc / 273 Lux at 32.8' / 10 m

Color Temperature

2700 to 10,000K

Color Modes

RGBWW

Color Accuracy Standard

CRI 98
TLCI 98

Cooling System

Fan

Dimming

Yes, 0 to 100% (Continuous)

Display

LCD

Housing Material

Aluminum

Expected Lamp Life

50000 Hours

Beam Angle

46°

Rectangular Panel Size

12 x 12" / 30.5 x 30.5 cm

Fixture Dimensions

Fixture: 12.6 x 12.6 x 4.3" / 32.0 x 32.0 x 10.9 cm

Fixture Weight

13.2 lb / 6 kg

Power Input Connection

XLR 3-Pin

DMX Connection

XLR 5-Pin, RJ45

Yoke Mount

TVMP/ Hex Bolt

Yoke Type

Yoke/Bracket

Remote Control Type

Bluetooth, CRMX, DMX, Wireless DMX

AC Input Power

100 to 240 VAC, 50 / 60 Hz

DC Input Power

13 to 28 VDC

Power Source

AC Adapter, External Battery

Max Power Consumption

200 W

Power Supply Output

14 VDC

Power Supply Power Connector

IEC Input / XLR 3-Pin Output

Cable Type

IEC to Edison (NEMA 5-15)

IP Rating

IP20

Operating Temperature

-4 to 113°F / -20 to 45°C

Package Weight

Box Dimensions (LxWxH)

42.5 x 25.75 x 19.75"
