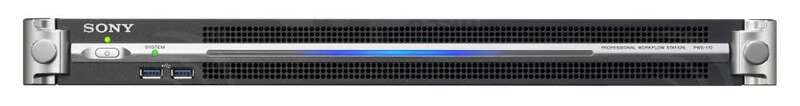

Sony - PWS-110PR1 - Control Workstation For PWS-4400
The PWS-110PR1 is a 1RU short-depth production control workstation to control the PWS-4500 4K/HD multi-port AV storage unit for live operation. It includes pre-installed PWA-PRC1 production control software and video input card required to support this operation.
Specifications | |
Power requirement | 100V to 240V AC, 50/60 Hz |
Power consumption - Max | 235W |
Power consumption - Standby | 3W or lower |
Operating temperature | 5 ~ 35 C (41 ~ 95 F) |
Storage temperature | -20 ~ 55 C (-4 ~ 131 F) |
Operating humidity | 20% to 90% (relative humidity) |
Storage humidity | 75% or lower |
Mass / weight | 10.2 kg (22 lb. 7.8 oz.) |
Dimensions (width / height / depth) | 440 x 43.6 x 507 mm |
(17 3/8 x 1 3/4 x 20 inch) | |
Inputs/Outputs | |
LAN | RJ-45 x 2port (1000BASE-T,100BASE-TX) |
USB | - Super Speed USB (USB 3.0) Type A |
- Total 6 ports (2 on front and 4 on rear) | |
- Front: Power delivery support (900 mA/port) | |
- Rear: Power delivery support on bottom right port (900 mA), not supported on other three ports | |
