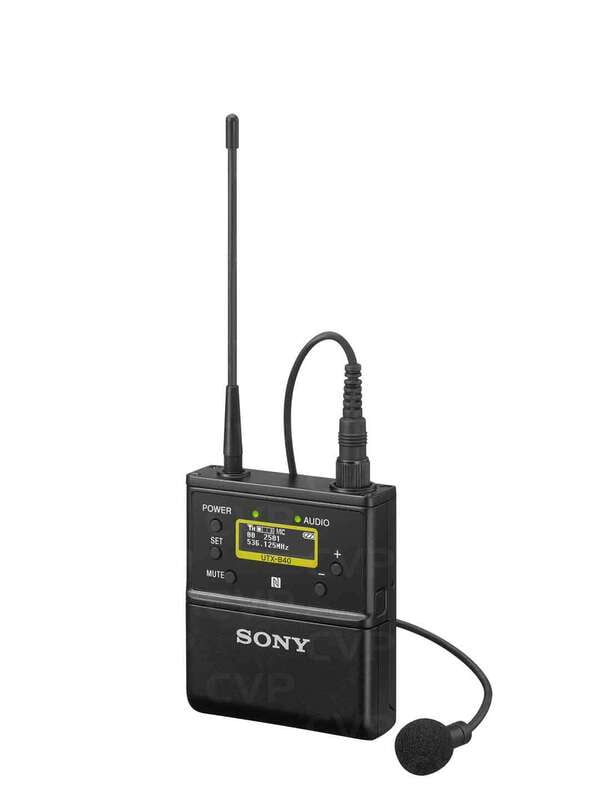

Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (UC14: 470 to 542 MHz)
The Sony UTX-B40 is a wireless bodypack transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight, with a robust, all-metal construction, this bodypack is well suited for tough operating conditions, while remaining comfortable for the talent to wear.
Specifications
System
Wireless Transmission | Analog UHF |
RF Frequency Band | 470 to 542 MHz |
RF Bandwidth | 72 MHz |
Frequency Step Size | 25 kHz |
Max Operating Range | 330' / 100.6 m (Typical) |
Latency | 0.35 ms |
Modulation | FM |
Transmitter
Form Factor | Bodypack |
RF Output Power | 5 / 30 mW |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
Muting | Mute Switch |
Audio Input Level | +60 dBV (Mic Level) |
Gain Range | 0 to 21 dB (3 dB Steps) |
Frequency Response | 23 Hz to 18 kHz |
Sync Method | NFC |
Antenna | 1 x 1/4 Wave External, Fixed |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 8 Hours (Alkaline) |
USB/Lightning Connectivity | 1 x USB Type-C (Bus Power, Charging) |
Display & Indicators | 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power) |
Housing | Metal |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 131°F / -20 to 55°C |
Dimensions | 2.5 x 3.2 x 0.8" / 63 x 82 x 20 mm (without Antennas) |
Weight | 5.3 oz / 149 g (without Batteries) |
Microphone
Form Factor | Lavalier |
Sound Field | Mono |
Capsule | Electret Condenser |
Polar Pattern | Omnidirectional |
Frequency Range | 40 Hz to 20 kHz |
Sensitivity | -43 dB at 1 kHz |
Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
Cable Length | 3.9' / 1.19 m |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 131°F / -20 to 55°C |
Length | 0.77" / 19.5 mm |
Diameter | 0.27" / 6.8 mm |
Weight | 0.57 oz / 16.2 g |
General
Packaging Info
Package Weight | 1.045 lb |
Box Dimensions (LxWxH) | 12.1 x 7.4 x 3.1" |
