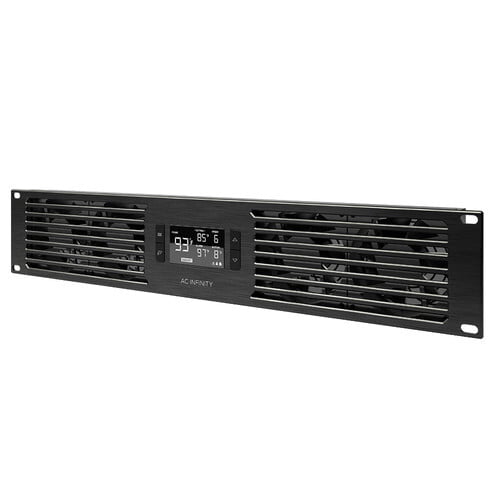

AC Infinity CLOUDPLATE T7 Rackmount Cooling Fan System (Exhaust Design)
The CLOUDPLATE T7-N from AC Infinity is a rackmount cooling fan system with an intake design suitable for use in server, network, and IT racks where medium-to-ambient noise levels are accepted. It uses 2 RU of space and can be mounted in most 19" racks.
Air Flow | 50 to 220 CFM |
Noise Level | 10 to 36 dBA |
Static Pressure | 2.56 mm-H2O |
Operating Voltage | 12 VDC |
Power | 10 W |
Current | 0.83 A |
Operating Humidity | 35 to 85% RH |
Operating Temperature | 0 to 158°F / -17.8 to 70°C |
Fan Bearing Type | Dual ball |
Life Expectancy | 67,000 hours (L10) |
Approvals | Fan Quality: UL, CE, TUV, RoHS |
Rack Size | 2 RU |
Mounting Screw Holes | 0.24 x 0.35" / 6.1 x 9.0 mm |
Mounting Hole Spacing | W x H = 18.3 x 3" / 46.4 x 7.7 cm |
Display Size | W x H = 2.3 x 1.3" / 5.8 x 3.2 cm |
Probe | Length: 72" / 182.9 cm |
Cord Length | 72" / 182.9 cm |
Enclosure Material | Solid Aluminum |
Dimensions | 19.0 x 3.5 x 1.5" / 48.3 x 8.9 x 3.8 cm |
Packaging Info
Package Weight | 1.6 kg |
Box Dimensions (LxWxH) | 25 x 5.6 x 1.8" |
