Datavideo PTR-10T Mark II Robotic Pan/Tilt head w HDBaseT
Model Number
PTR-10T MARK II
Video Interface
HDMI x 1
SDI x 1
RJ45 x 1 (HDBaseT)
Video Output
2160p 29.97/25
1080p 59.94/50
1080i 59.94/50
720p 59.94/50
Control Unit
RMC-180
HS-1600T
HS-1600T Mark II
RMC-300A
VISCA Protocol Controller
IP Control
IR remote
Panning / Tilting Range
Pan: 340°
Tilt: ±45°
Panning / Tilting Speed
Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec
Preset
Pan/Tilt position 50
Control Distance
1,200M by RS422
100M by HDBaseT
Control Protocal
Sony VISCA
DVIP
Control Input
RS-422
HDBaseT
Maximum Load
4 KG Max
Control Output
RS-232
RS-422
BX-Lens
LanC
Power Requirement
DC 12V~ 18V, 3A (Without Camera)
DC 12V~ 18V, 5A (With Camera)

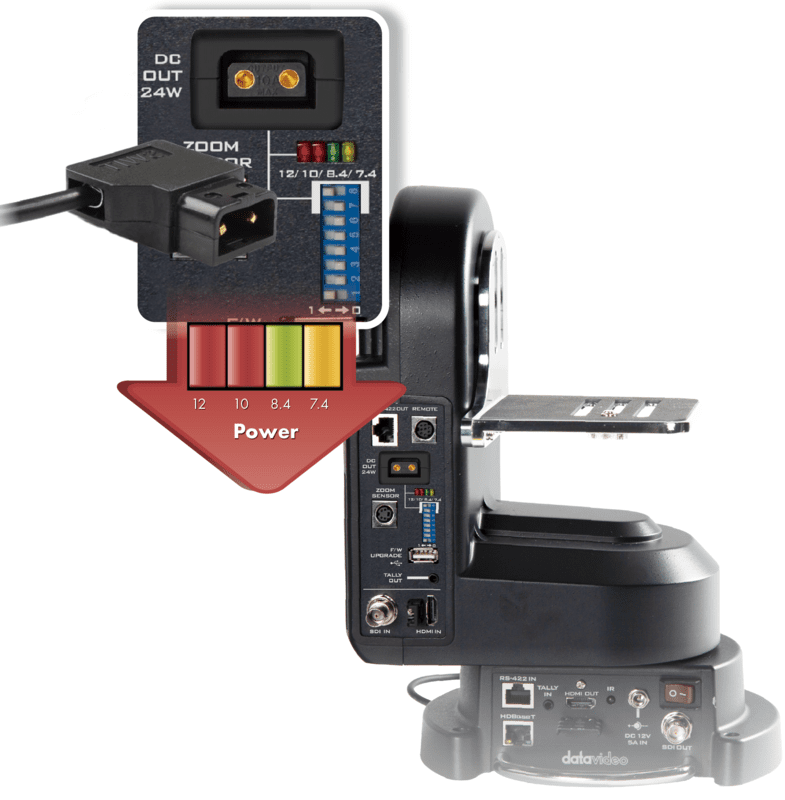

Power Supply
DC 12/10/8.4/7.4V, 24W Max
Operating Temp. Range
0~40 C°
Operating Humidity Range
10~80%
Storage Temp. Range
-10~60C°
Storage Humidity Range
5~80%
Weight
5.4 KG
Dimension (LxWxH)
230 x 190 x 300 mm
Optional accessories
ZEK-1
WM-10
WM-11
CM-10
What's in the Box
PTR-10T Mark II Main Unit x 1
DC 12V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw (14mm) x 2
1/4” screw (10mm) x 1
1/4” to 3/8” screw adaptor x 1
