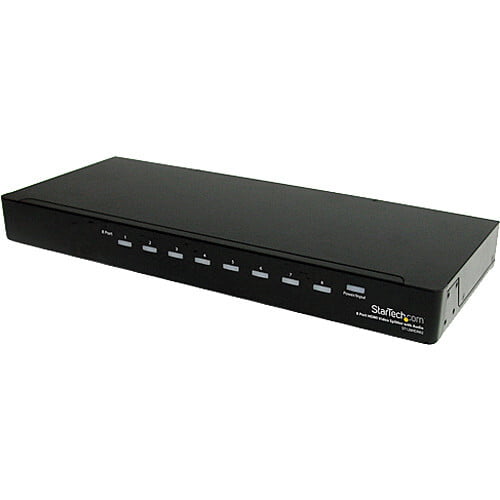

StarTech ST128HDMI2 8 Port Rack-Mountable HDMI Video Splitter with Audio
he black ST128HDMI2 8 Port Rack-Mountable High Speed HDMI Video Splitter with Audio from StarTech lets you share a single HDMI audio-video source with up to 8 HDMI or DVI-D displays without sacrificing image or sound quality.
Specs
Hardware
Ports | 8 |
Video Signal | High speed HDMI (HDMI 1.3) |
Standard | Industry: DDC (Pass-through supported on port 1), high speed HDMI, HDCP, EDID |
Cabling Type | HDMI |
System Requirements | HDMI enabled display device (i.e. monitor, projector, HDTV, more.) |
Connectors
Connector 1 | 1: 3.5 mm mini-jack (3-position) female |
Connector 2 | 4: 3.5 mm mini-jack (3 position) female |
Connector | 1 x HDMI female (input) |
LED | 1 x Power/input |
Performance
Cable Length | 50.0' (15.2 m) |
Resolution | Maximum Digital: HDTV 1080p / PC 1920 x 1200 |
Supported Resolutions | 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200) |
Supported | Wide Screen: Yes |
Power
Power Adapter | Yes, 9 to 12 VDC, 1500 mA |
Input Voltage | 110 to 240 AC |
Input Current | 800 mA |
Output Voltage | 12 DC |
Output Current | 1.5 A |
Center Tip Polarity | Positive |
Power Consumption | 10.2 W |
Environmental
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -10 to 60°F (-14 to 140°C) |
Humidity | 0 to 80% |
Physical Characteristics
Dimensions (L x W x H) | 17.3 x 7.2 x 1.8" (440.0 x 183.0 x 45.0 mm) |
Weight | 77 oz (2182 g) |
Packaging Info
Package Weight | 7.4 lb |
Box Dimensions (LxWxH) | 23.3 x 10.6 x 3.4" |
