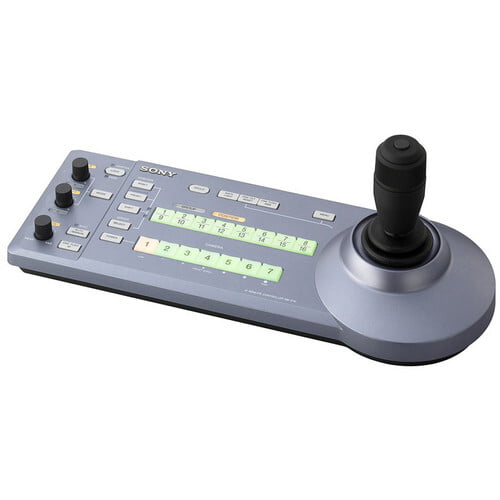

Remotely control your BRC remote cameras with the RM-IP10 IP Remote Controller from Sony over an IP network. The RM-IP10 can control up to 112 BRC cameras using a combination of IP and serial communication, and up to five RM-IP10 controllers can operate on the same LAN.
Non-returnable
$2,138.46
Customize
Available Offer
Share :
Product Details
Specifications
Outputs
1 x 8-Pin Mini DIN, RS-232 1 x 9-Pin DIN, RS-422 1 x RJ45, 10/100BASE-TX Ethernet
Serial Protocol
9600 b/s, VISCA RS-232C, RS-422 38,400 b/s, VISCA RS-232C, RS-422 VISCA over IP
Connectivity Features
112 x Maximum IP Connections 7 x Maximum Serial Connections 5 x Maximum Controllers on LAN
CPU Requirements
Intel Core 2 Duo 2.4 GHz or Higher
Memory Requirements
1 GB or More
Hard Drive Requirements
50 MB or More
PC Requirements
Microsoft Windows 7, 32-/64-bit Windows 8.1 Pro, 32-/64-bit Windows 10 Pro, 32-/64-bit
Input Power
12 VDC 10 to 13.2 VDC
Current Consumption
0.3 A, 3.6 W Maximum
Power Connector
1 x Jeita
Operating Temperature
32 to 104°F / 0 to 40℃
Storage Temperature
-4 to 140°F / -20 to 60℃
Dimensions
15.5 x 6.5 x 5.75" / 391.3 x 165 x 145.9 mm
Weight
2.1 lb / 950 g
Packaging Info
Package Weight
5.25 lb
Box Dimensions (LxWxH)
19.1 x 10.2 x 9.4"
