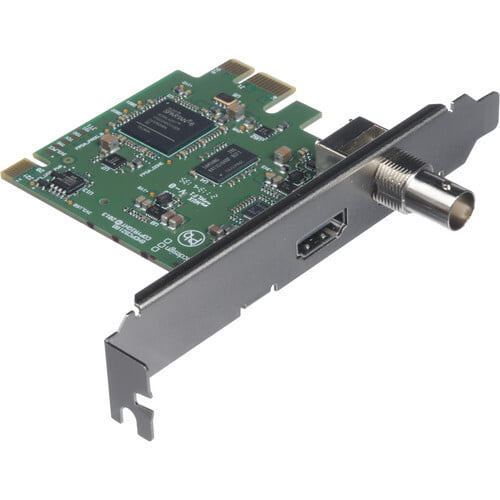

Blackmagic Design DeckLink Mini Monitor
The Blackmagic Design DeckLink Mini Monitor provides you with just the playback and monitoring functionality for performing color-correction and delivering client presentations on high-resolution HDMI or SDI monitors.
Specifications
Host Connection
PCIe x1 (PCIe 1.0)
Output
Video Output Connectors
1 x HDMI (HDMI 1.4a)
1 x BNC (SD-SDI)
Output Video Format
HDMI (8/10-Bit 4:2:2 YUV)
NTSC: 59.94 fps
PAL: 50 fps
720p: 50/59.94/60 fps
1080p: 23.98/24/25/29.97/30 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
Audio Output Connectors
None
Embedded Audio Output
None
Standards
Video Standard Compliance
SMPTE 259M/292M
Hardware
OS Compatibility
Windows 8.1 or Later
macOS 10.14 or Later
Linux
Power
Power Consumption
Device: 4 W
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
General
Certifications
C-Tick, CE, FCC, as per Manufacturer
Dimensions
3.94" / 10.01 cm
Weight
1.98 oz / 56 g
Warranty Length
Limited 3-Year Warranty
