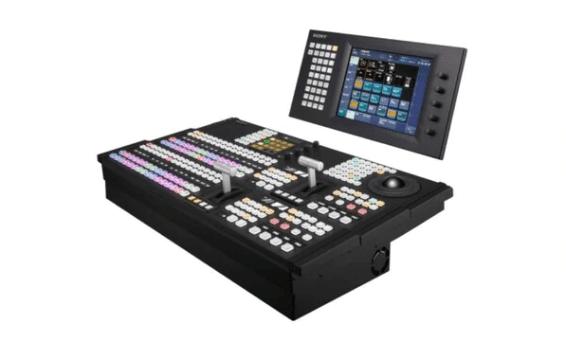

Sony MVS-3000A Compact and flexible SD / HD video switcher
Non-returnable
$21,692.31
Tags:
The MVS-3000A offers the same intuitive operation and menu structure as the larger MVS-7000X and MVS-8000X, but in a compact and affordable 2 M/E package.
Product Details
SPECIFICATION
Power requirement
AC 100 V to 240 V, ±10% 50/60 Hz
Power consumption
4 A to 1.7 A
Operating temperature
5˚C to 40˚C (41˚F to 104˚F)
Storage temperature
-20˚C to +60 ˚C (-4˚F to +140˚F)
Operating humidity
10% to 90% (Non-condensing)
Dimensions (W x H x D)
482 x 176 x 486 mm (19 x 7 x 19 1/4 inches)
Mass
19 kg (41 lb 14 oz) (fully loaded)
Video inputs/outputs
Primary inputs
32, BNC (x1 each)
SMPTE292M (HDTV), SMPTE259M-C (SDTV)
SMPTE292M (HDTV), SMPTE259M-C (SDTV)
Assignable outputsa
16, BNC (x1 each)
SMPTE292M (HDTV), SMPTE259M-C (SDTV)
SMPTE292M (HDTV), SMPTE259M-C (SDTV)
Supported Formats
HD
1080/59.94i, 1080/50i, 1080/23.976PsF, 1080/24PsF, 720/59.94p, 720/50p
SD
480/59.94i, 576/50i
Reference
Reference input
BNC (x2), 75 Ω with loop-through output HD tri-level sync or Analog black burst
Control
MVS LAN
RJ-45 (x1), 1000BASE-T
Remote 1 to 4
D-sub 9-pin (x1), RS-422A
Remote S1 to S2
D-sub 9-pin (x1), RS-422A
S-BUS
BNC (x1), S-BUS
Serial Tally
D-sub 9-pin (x1), RS-422A
Tally / GPI
D-sub 25-pin (x3), TTL level inputs (x18), open collector outputs (x48)
FM Device
USB-type A (x1), USB 2.0
