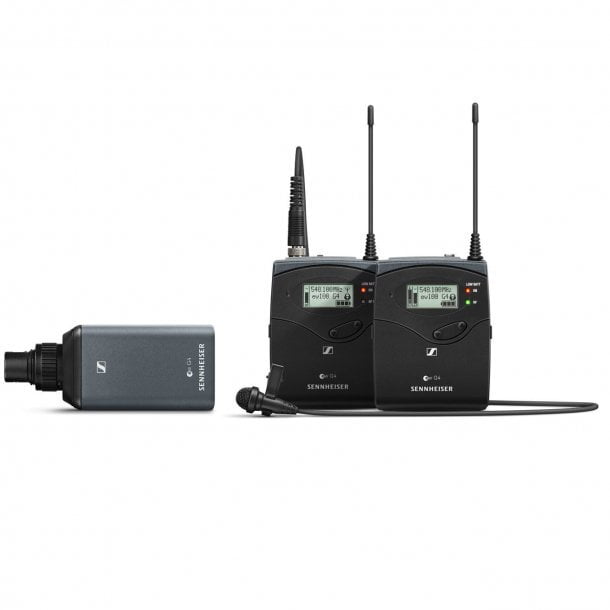

Sennheiser EW 100 ENG G4-C

System:

• Wireless Transmission: Analog UHF
• Number of RF Channels: 1680
• Included Transmitters: 1 x Bodypack with Microphone
• Diversity: Antenna Diversity
• RF Frequency Band: 734 - 776 MHz
• RF Bandwidth: 42 MHz
• Frequency Step Size: 25 kHz
• Max Operating Range: 330' / 100.6 m (Line of Sight)
• Max Systems per Setup: 12
• Deviation: 48 kHz (Peak)
• Modulation: Wideband FM

Receiver:

• Form Factor: Camera-Mount
• Mounting Options: Shoe-Mount (with Included Hardware)
• Antenna: 1 x Flexible Whip, Fixed
• Number of Audio Channels: 1
• Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
• Gain Range: 42 dB (6 dB Steps)
• Audio Output Level: +12 dBu
• Approximate RF Sensitivity: 1.6 µV
• Squelch: 5 to 25 dBμV
• Adjacent Channel Isolation: >65 dB
• Power Requirements: Battery
• Battery Type:
• 2 x AA (Included)
• 1 x Sennheiser Accupack (Not Included)
• Approx. Battery Life: 8 Hours (Alkaline)
• Display & Indicators: 1 x Backlit LCD (Battery Status, Output Level, RF Level)
• Housing Metal:
• Operating Temperature: 14 to 131°F / -10 to 55°C
• Dimensions: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
• Weight: 5.6 oz / 160 g (with Batteries)

Transmitter:

• Form Factor: Bodypack
• RF Output Power: 30 mW
• Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable)
• Muting: Mute Switch
• Audio Input Level: 3 V RMS (Max)
• Gain Range: 60 dB (3 dB Steps)
• Frequency Response:
• 80 Hz to 18 kHz (Mic)
• 25 Hz to 18 kHz (Line)
• Sync Method: IR
• Antenna: 1 x Flexible Whip, Fixed (Beltpack)
• Power Requirements: Battery
• Battery Type:
• 2 x AA (Included)
• 1 x Sennheiser Accupack (Not Included)
• Approx. Battery Life: 8 Hours (Alkaline)
• Display & Indicators: 1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
• Housing: Metal
• Dimensions: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
• Weight: 5.6 oz / 160 g (with Batteries)

Microphone:

• Form Factor: Lavalier
• Sound Field: Mono
• Capsule: Electret Condenser
• Polar Pattern: Omnidirectional
• Frequency Range: 50 Hz to 18 kHz
• Equivalent Noise Level: 36 dB
• Maximum SPL: 130 dB SPL Peak
• Sensitivity: 20 mV/Pa
• Output Connectors: 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable)
• Cable Length: 5.25' / 1.6 m
• Operating Voltage: 7.5 V

Transmitter 2:

• Form Factor: Plug-On
• RF Output Power: 30 mW
• Audio I/O: 1 x XLR 3-Pin Female Unbalanced Input (Lockable)
• Muting: Mute Switch
• Audio Input Level: 3 V RMS
• Gain Range: 48 dB (6 dB Steps)
• Frequency Response: 80 Hz to 18 kHz
• Sync Method: IR
• Antenna: 1 x Internal
• Power Requirements: Battery
• Battery Type:
• 2 x AA (Included)
• 1 x Sennheiser Accupack (Not Included)
• Approx. Battery Life: 8 Hours (Alkaline)
• Display & Indicators: 1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
• Housing: Metal
• Operating Temperature: 14 to 131°F / -10 to 55°C
• Dimensions: 1.7 x 4.1 x 1.7" / 43 x 105 x 43 mm
• Weight: 6.9 oz / 195 g (with Batteries)
